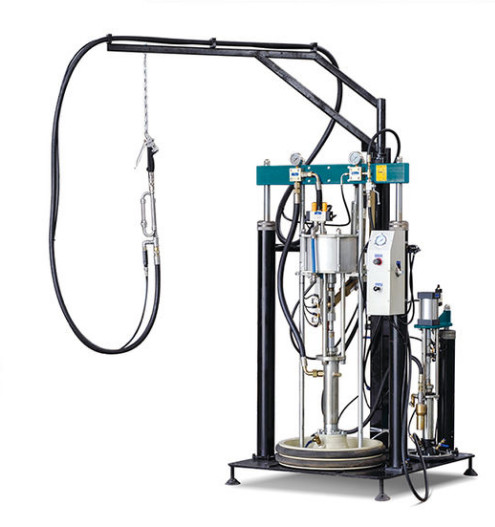

Manual sealants spreading machine with two pump for insulating glass processing
Description of sealant dispensing machine
The manual sealants sealing machine uses imported motor instead of cylinder to control the machine working. The sealing gun and mixer are used famous brand in China. The sealing machine always use the rotated table together to coat glass by workers.
Sealant dispensing machine is used to apply the second layer of sealant to the insulating glass.
Silicone extruder machine is special equipment used for spreading the two-component polysulphide glue and/or two-component silicone structure glue for the aluminum type insulating glass or curtainwall glass.
Sealant-spreading Machine is featured by uniform mixture and continuous stability of extruded glue, good spreading effect and high production efficiency.
Advantage of silicone extruder machine
• Imported motor system to improve equipment efficiency
•The sealing machine could coat double and triple glass by different glue nozzles.
• Imported sealant gun,stainless steel mixer
From the sealing gun until the sealing mixer, they are always stopped by glues. The sealing motor is import from Korea.
• High pressure protect device
• Anti-back flow control structure
• Mixed rate detector can control the rate of two kinds of glue
Technical parameter of Silicone sealant spreading Machine
| Working air pressure | 0.3-0.6MPa |
| Sealant spreading pressure | 15-20MPa |
| Sealant volume | 4L/min |
| Diameter of A/B sealant | 570mm/280mm |
| Sealant spreading air pressure ratio | 50:1 |
| Mixed rate | 6:1-14:1 |
| Air supply | Flow 0.8m3/min |
| Air pressure | ≥0.8MPa |
| Overall dimension | 1100*950*1630mm |
| Weight | 490kg |
| Capacity of the glue drum | 200-300 ml/200 kg |
Feature of sealant spreading machine
1.A and B pump adopt Korea brand HASCO.So it can ensure the reliable working-effect.
2.Sealant extruder machine is featured by uniform mixture and continuous stability of extruded glue, good spreading effect and high production efficiency.
3.Special check valve in proportioning pump to make the sealant coming out more fluently , suitable for all kinds of sealant ,avoid incomplete mixing .
4.Pneumatic control ,split type structure ,easy to operate
5.The rotating arm is equipped with a universal device, flexible and portable .
Related products
Sealant-spreading machine LJST03
Main feature
• Mixed rate detector can control the rate of two kinds of glue
• Use cylinder to provide power
• China sealant gun,stainless steel mixer
• High pressure protect device
• Anti-back flow control structure
Technical data of Sealant-spreading machine
| Working air pressure | 0.3-0.6MPa |
| Sealant spreading pressure | 15-20MPa |
| Sealant volume | 4L/min |
| Diameter of A/B sealant | 570mm/280mm |
| Sealant spreading air pressure ratio | 50:1 |
| Mixed rate | 6:1-14:1 |
| Air supply | Flow 0.8m3/min |
| Air pressure | ≥0.8MPa |
| Overall dimension | 1100*950*1630mm |
Rotated Sealant Spreading Table
Main feature
• It is used for fixing and rotating glass when manual coating the outside of IG glass
• The middle sucker is suitable for small pieces of glass,however,extra support frame is for large pieces of glass
• Easy operating, simple and flexible
Technical data
| Power supply | 380V 50Hz |
| Total power | 0.37kw |
| Operating dimension | 1500*1500mm |
| Dimension | 600*550*985mm
|
